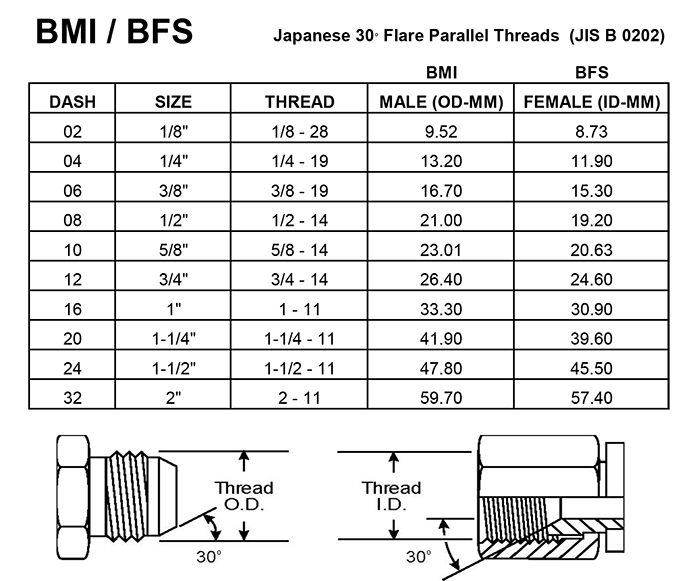

Japanese 30 ํ Flare Parallel Thread (BMI-BFS)

The Japanese 30 ํ Flare male connector will mate with a Japanese 30 ํ flare female only.

The male and female have straight threads and a 30 ํ seat.  The seal is made on the 30 ํ seat.

The threads on the Japanese 30 ํ flare connector confrom to JIS B0202, which are the same as the BSPOR threads.  The the british and Japanese connectors have a 30 ํ seat, but they are not interchangable because the British seat is inverted.



                                Male                                                                                                Female
                              ( BMI )                                                                                                ( BFS )
